Specifications Table

Input Voltage    100-230V 50/60Hz

Power  @  50%    2 KVA

Maximum  Welding Power    16 KVA

Maximum Current    3000A

Protection Class    IP 21

Weight  ofthe welder    9.4KG

Packing  size    150 x 230 x 400mm

Gross weight    13KG

Features:

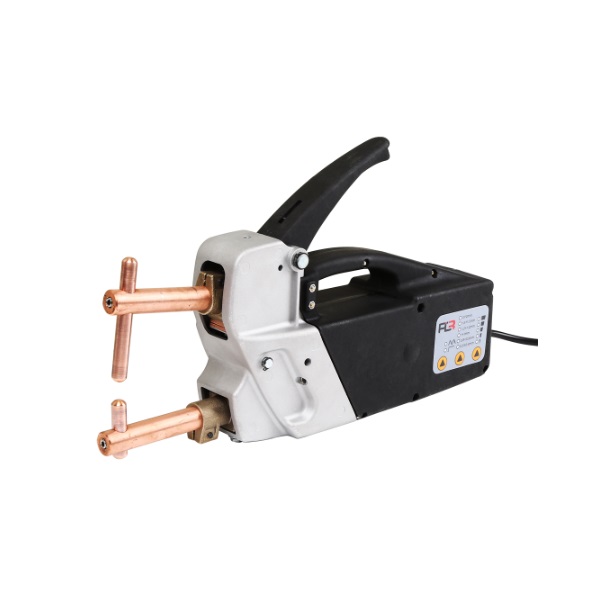

H-3000 is a semi-automatic handheld spot welder suitable  for up to 2.0mm + 2.0mm  bodyshop applications.  This high performance puls  spot welder has a heavy duty transformer and provides 2 Kva @ 50%.

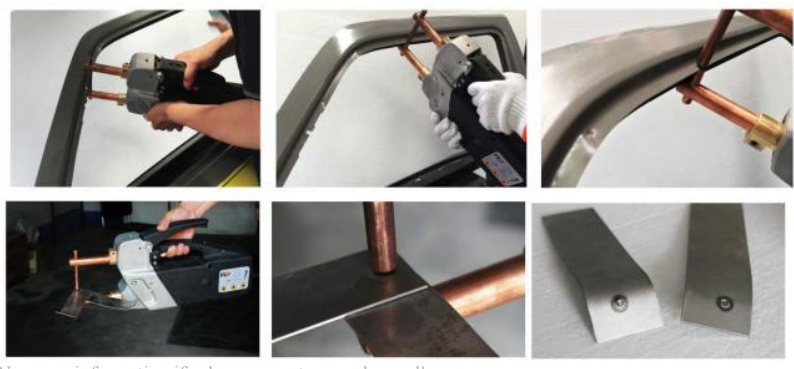

Professional, versatile and portable spot welder for  auto  body  repair  shops  and  maintenance shops. Pulse for use on high tensile steels commonly used on todays modern vehicles Synchronous builtin electronic timer with SCR from 2 to 65 cycles. Compensation circuit starts the  timer only when there is a proper passage of current, which enables to perform on oxidised sheets, on surfaces with paint residues or on black sheets.

Current control with phase shift adjustment to carry out difficult welds, on very thin thickness, on  rods with reduced diameter, on stainless steel sheet and similar. Force adjustment with scale in daN. Additional arm couplings to provide larger opening between arms.

All transformer are coated with F class insulation material.  Test are made using 4000 volts. Supplied complete with 125mm and 250mm arms.
