Specifications

Input Voltage:                     AC 220V/380V

Frequency:                          50/60Hz

Rated Power:                       2.2KVA

Output Current:                  3800A

Output Voltage:                  6-8V

Welding Mode:                   Induction Welding

Number of Welding Gun:   One

Package Size:                      57*46*62cm

Weight:                               45KG

Features

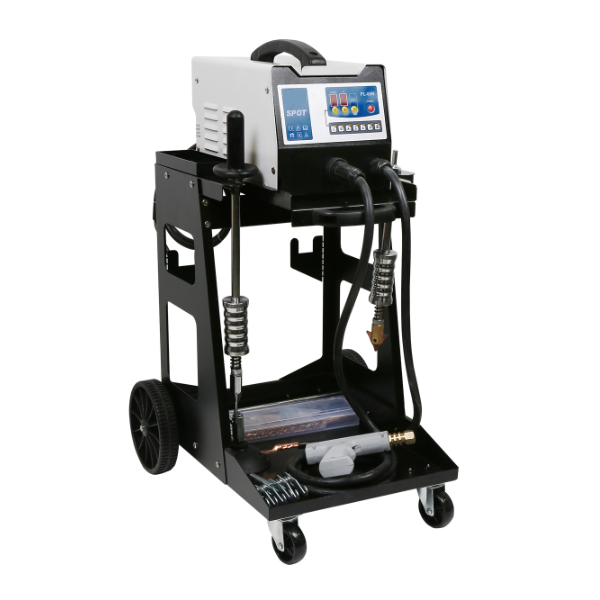

230V  or  400V  steel  dent  puller  with  3800A  output  current,  ideal  for  all  steel straightening  and  dent pulling jobs.  Simple to use thanks to  its  automatic  gun  and  its user friendly control panel.

Only  2 parameters to  select

•  the  output power level  (11  levels)

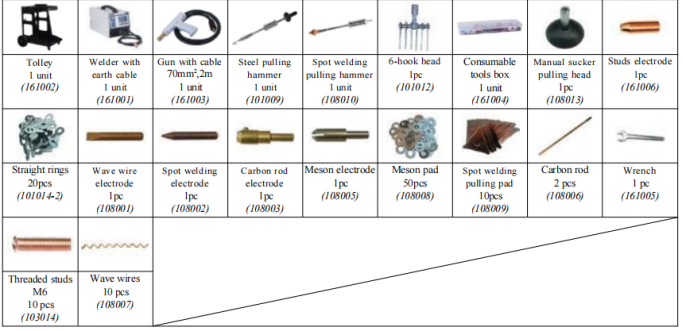

•  the tool which  is used  (7 tools,  triangle/rings/wave wire/pressing/spot welding/shrinking/rivets)

•  no need to  select the welding  current  and welding time  anymore.

Automatic  triggering

The  welding is triggered automatically by a simple contact between the tool and the part to straighten.
