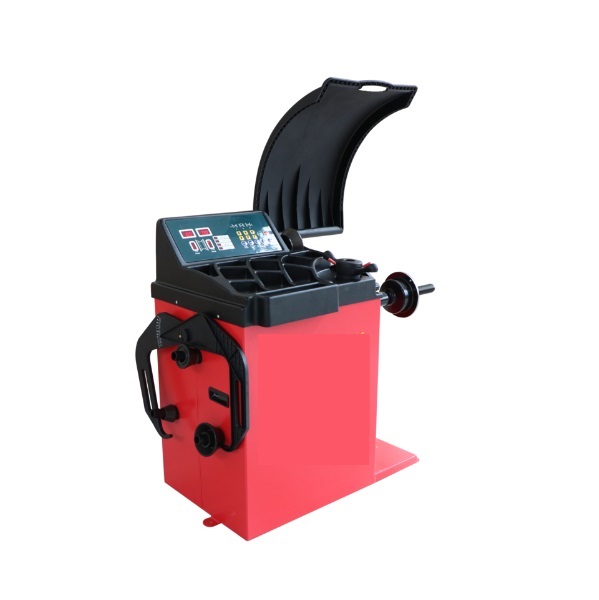

C301GN Simple Wheel Balancer-Tire Equipment Series-Yantai Winner Electronic&Mechanical Technology, Co., Ltd

Hot Products

The C301GN is configured in basic modes such as ALU-S1-3 and ALU-1.

Simple operation is a good commercial level balancing machine.

Get prices

Product Details

Features

1. Easy-operated press keyboard

2. Manual input

3. With self-calibrated program

4. Built-in multiple balance modes, dynamic, static, ALU-1, ALU-2, ALU-3a

5. Unit (gram to ounce) conversion option6. Protective cover (optional)7. Motorcycle fixture (optional)

Specification Table

Model No.	C301G	Standard fittings
Wheel hub diameter range	10‘’-30‘’	4pcs. for cone adapter set
Max tire width	415mm	Wheel hub caliper
tire diameter	1080mm	100g balance weight * 1 pcs.
Distance to spin flange	10''	Balance weight
Maximum tire weight	65kg	Hexagon wrench * 1 pcs.
Balance accuracy	1g	Optional accessories
Balance speed	180-220RPM	Tire protector
Operation disply interface	large press keyboard	Motorcycle jig
Detective location	64
Ounce/Gram conversion option	Yes
ALU mode	6
Net / Gross Weight	120/146kg
Voltage Options	220V
Packing Size	9777115cm
