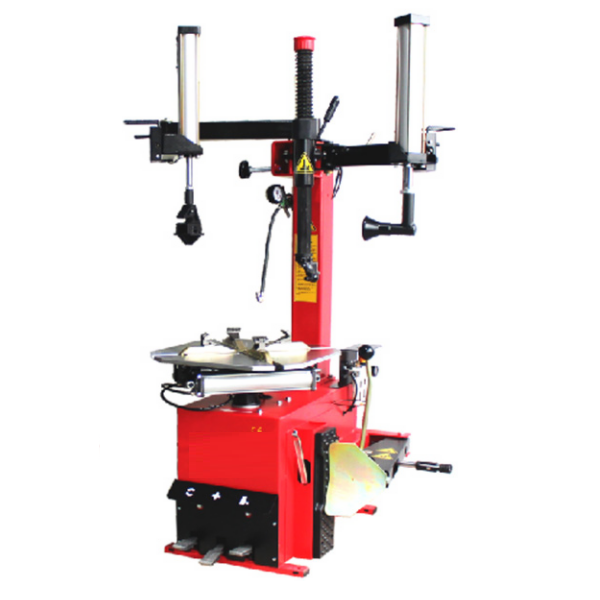

TC201GB Swing Arm Tir Changer
TC201GB Swing Arm Tir Changer
TC201GB Swing Arm Tir Changer

Hot Products

Swing Arm Tir Changer With Strong Assist Arm

Swing arm design

Twins clamping cylinders design



Product Details

1. Automatic high-duty disassembling head with extended disassembling hook, easy and fast to disassembling the large and small tires;


2. Dual air-lock rocker arm design;


3. All-around press by 3 in 1 reinforced auxiliary arm, and easily finish disassembling labor;


4. 2000-2500kgf aluminum alloy pressure cylinder for tires;


5. 3-step adjustable beading shovel;


6. Extended cylinder with 80mm diameter available for disassembling of explosion-proof and hardened tires;


7. Hexagonal rod adopted with pneumatic lock-in, which more convenient and quicker;


Model No.C211SEStandard fittings
Applicable outer clamping
10‘’-21‘’Inflation gauge x 1pcs.
Applicable inside clamping12‘’-24‘’Crowbar x 1pcs.
Maximum tire width315mmMounting head gasket x 1pcs.
Maximum tire diameter960mmLubrication box
Working air pressure8-10barOptional accessories
Tire-pressed shovel force2000-2500kgfMotorcycle fixture
N./G.Weight260/280kgIT Bead Blast System
OPtional volt220V/380V
Packing DIM115*77*100cm
