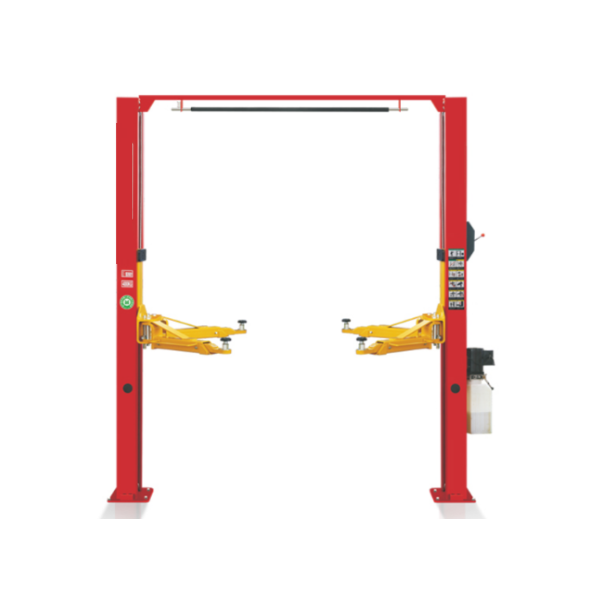

Manual Two Sides Handle Release
Lifting Capacity: 4000kg
Motor Power: 2.2kw-380v or 2.2kw-220v
Oil Pressure Rating: 24MPa
Product Details

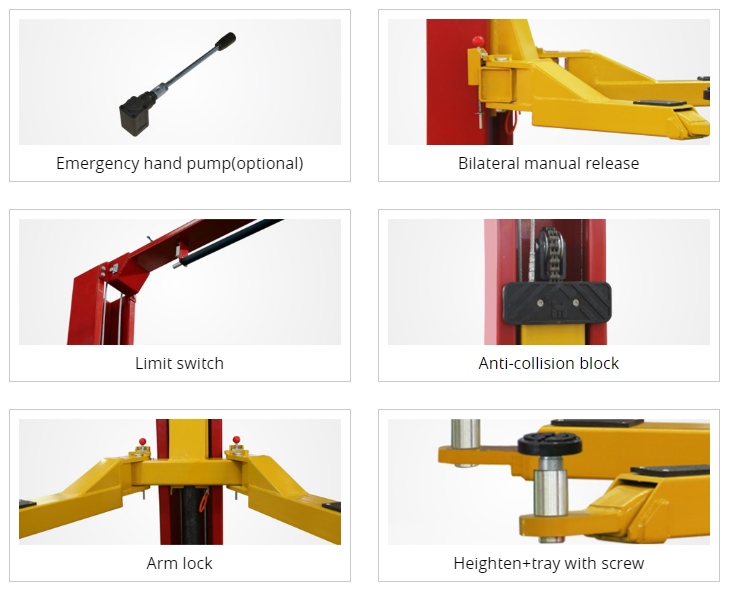

Features
1.Clear floor design, save space.
2.Adopt double cylinder, 4x4 higher and stronger chain, the wire rope balance system.
3.Bilateral manual release.
4.Rubber pad door-opening protection.
5.Rubber support pad adopts double helix adjustment height and height increase joint.
6.Limit switch.
7.The arm adopts two stages or three stages design, larger range adjustment, suitable for different vehicle chassis, three-node arm optional installation.
Specifications Table
Lifting Capacity | 4000kg |
Lifting Height | 1850mm |
Min. Height | 120mm |
Pass Width | 2500mm |
Column Width | 2790mm |
Total Width | 3320mm |
Lifting Time | 50s-60s |
Motor Power | 2.2kw-380v or 2.2kw-220v |
Oil Pressure Rating | 24MPa |
Weight | 650kg |

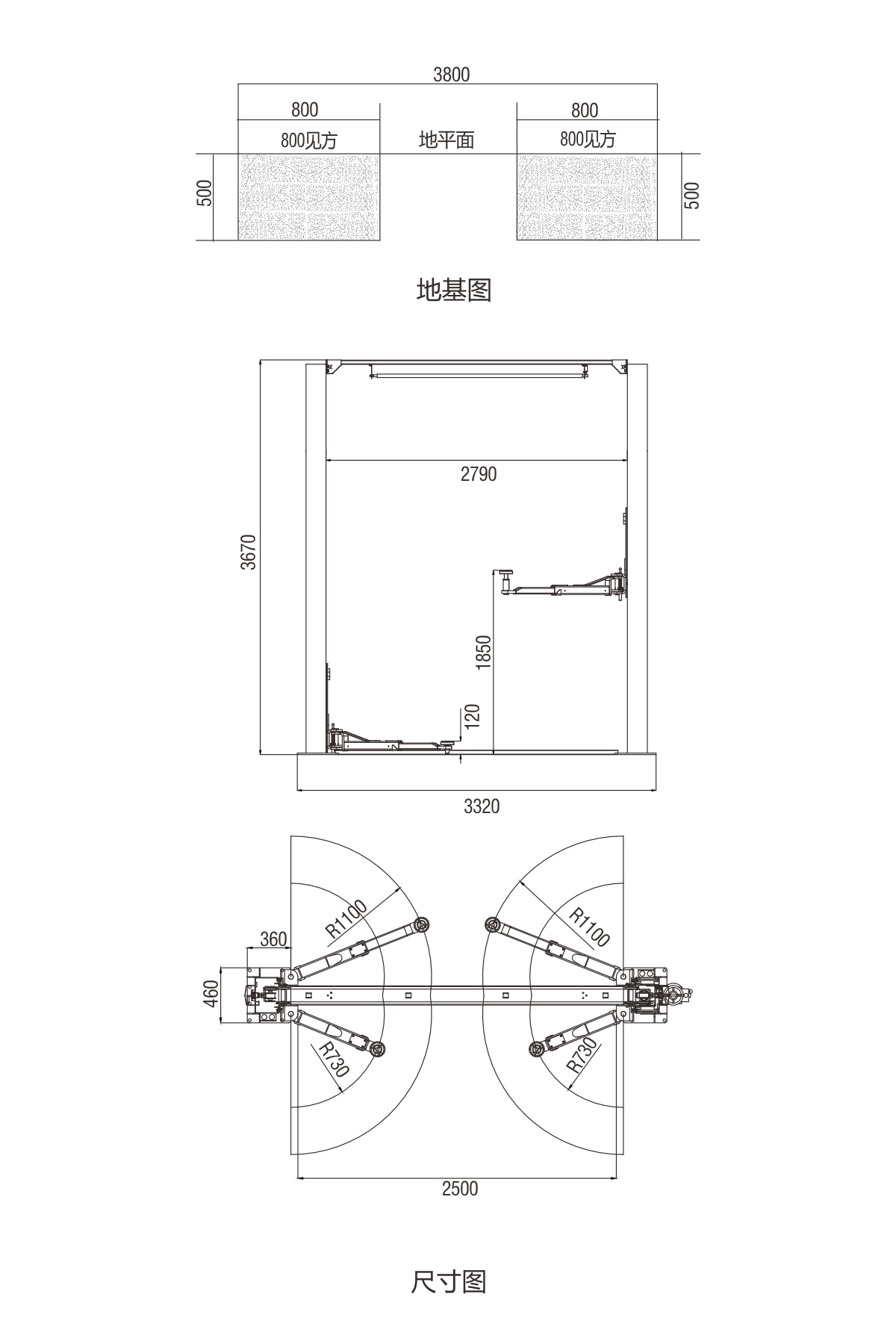

Dimensions
