Hot Products
Lifting Capacity: 3500kg
Motor Power: 3.0kw-380v or 3.0kw-220v
Oil Pressure Rating: 24MPa
Air Pressure: 0.6-0.8MPa
Product Details

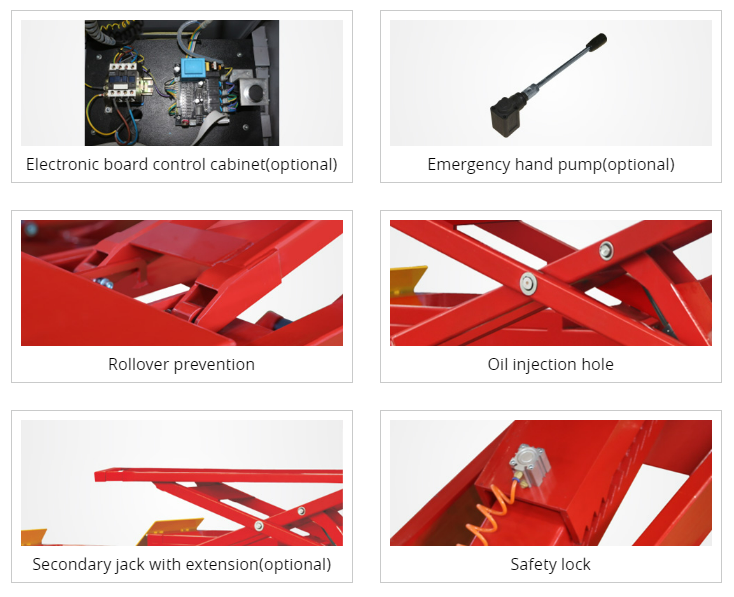

Features
1.In-ground mounted, occupied small space.
2. Electric control pneumatic release, safety and reliable.
3.Hydraulic system adopts the advanced integrated valve plate oil and imports of seal parts.
4.Power failure can adopt manually will the car drop out.
5.Oil cylinder with upper return oil, prevent oil cylinder rust.
Specification Table
Lifting Capacity | 3500kg |
Lifting Height | (Main) 1700mm (Jack) 450mm |
Min. Height | 340mm |
Lifting Time | 50s-60s |
Length of The Platform | 4200mm |
Platform Width | 600mm |
Motor Power | 3.0kw-380v or 3.0kw-220v |
Oil Pressure Rating | 24MPa |
Air Pressure | 0.6-0.8MPa |
Weight | 1900kg |

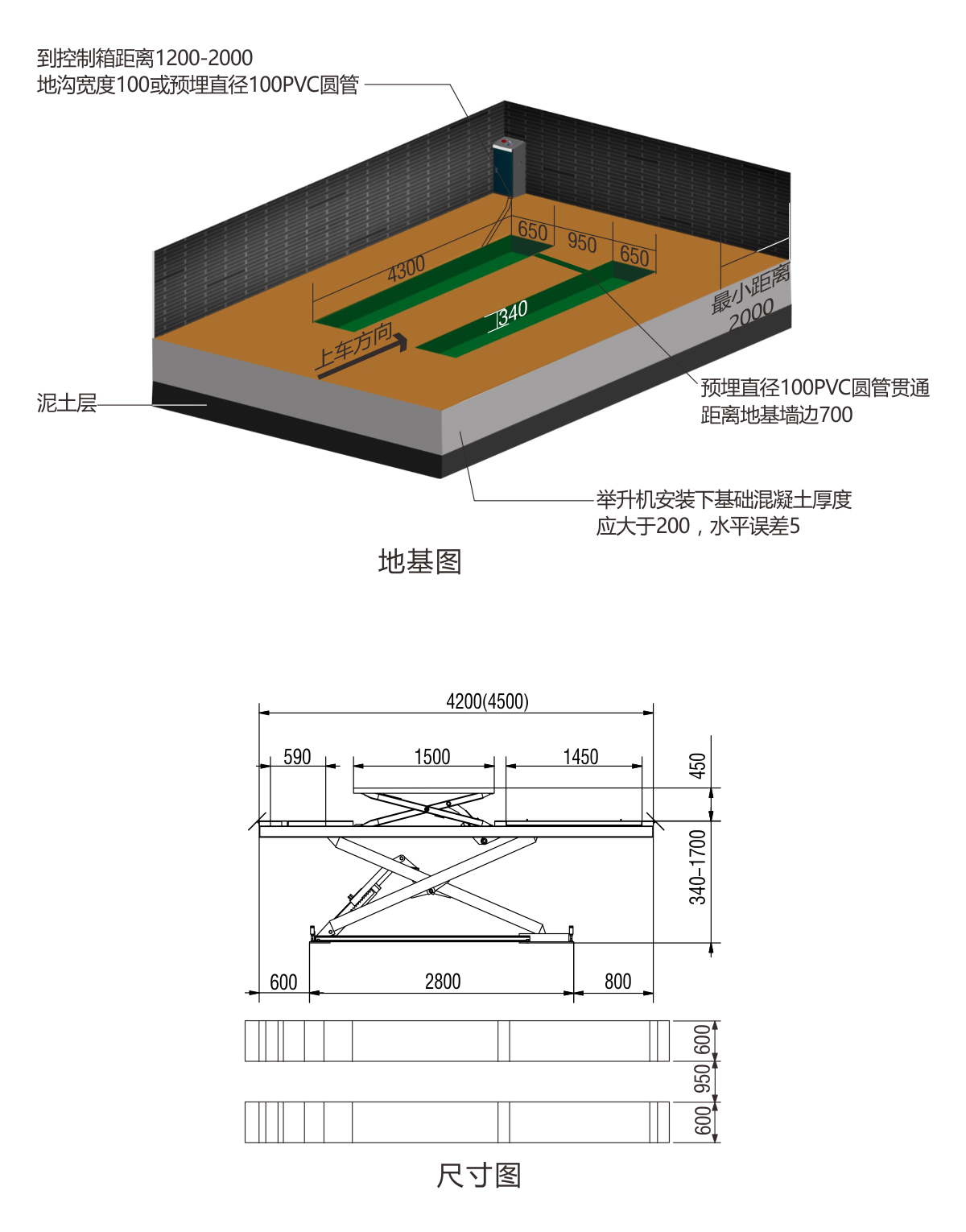

Dimension
