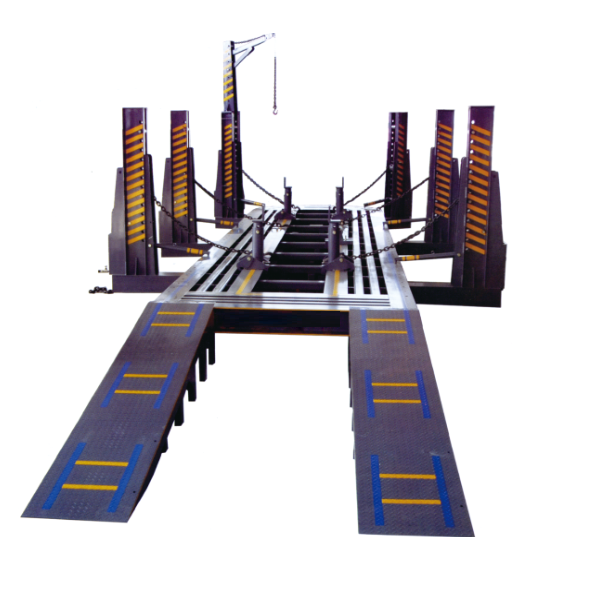

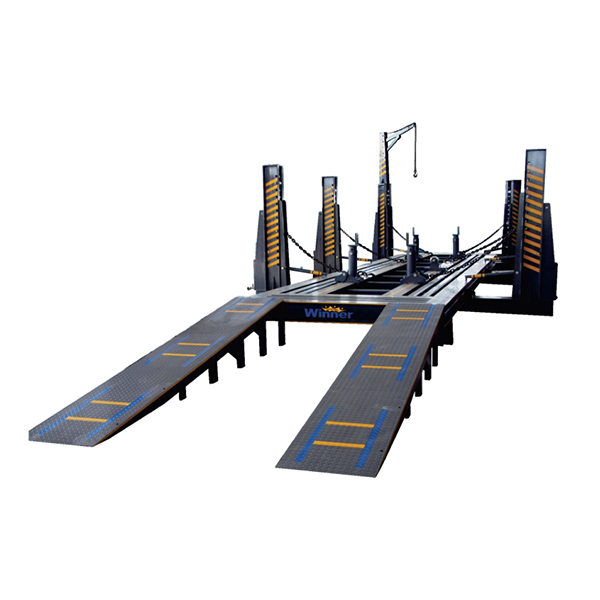

M-60 Truck Body Frame Machine
M-60 Truck Body Frame Machine
M-60 Truck Body Frame Machine
M-60 Truck Body Frame Machine
M-60 Truck Body Frame Machine
M-60 Truck Body Frame Machine
M-60 Truck Body Frame Machine

Hot Products

With 6 towers, each pulling capacity 25ton

Platform Length: 11600mm

Platform Width: 2560mm

Tower Pulling Capacity: 235 KN/10 Tons

Max. Lifting Capacity: 50000KG



Product Details

1.With 6 towers, each pulling capacity 25ton.

2. A complete pushing and pulling tool kit is furnished, considering any type of reshaping.

3.Lifting equipment with 50tons capacity, which can effectively repair the declined distorted beam.

4.With 25 tons of hydraulic ram, it can repair distortion, protruding, flex and so on flange wrench.

5.Four towers are 3000mm high and the other two are up to 4446mm. The quantity of towers is for customers' choice.


Model

M-60

Type

Truck Body/Chassis Collision Bench

Platform Length

11600mm

Platform Width

2560mm

Platform Height

600mm

Tower Pulling Capacity

235 KN/25 Tons

Tower Quantity

6 towers

Max. Lifting Capacity

50000KG

Pulling Tower Working Range

3600

Hydraulic Pressure

70MPa(10000psi)

Pneumatic Pressure

0.8MPa

Total Weight

10000KG

Delivery time

30 days after receiving the deposit

Warranty

13 months after delivery
