Outside size(mm): 7000*4000*3500(L*W*H)
Inside size(mm): 6900*3900*2750(L*W*H)
Customized specifications are supported.
Product Details

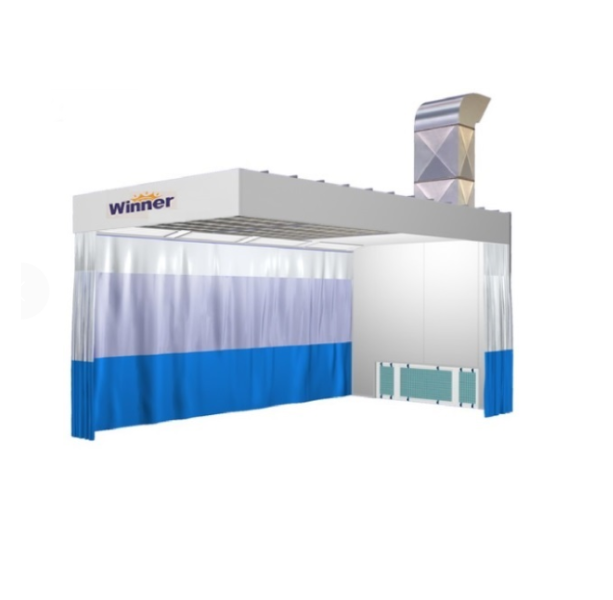

1. Pre station is used for polishing cars before painting work.
2. The dimension can be customized according to the client’s request.
3. All parts related with electricity are from famous brand in China.
4. Power supply: 380V, 3 phase, 50Hz; 220V, 3 phase, 60Hz; or 415V, 3 phase, 50Hz
| Outside Size:(mm) | 7550*3600*3000mm | ||||
| Inside Size:(mm) | 6300*3600*2600mm | ||||
| Total Power:(KW) | 11kw | ||||
| Wall Panel: | Three sides of PVC curtains, back side with 50mm EPS wall panels. | ||||
| Basement: | Without | ||||
| Ceiling installation: | Steel rope hanging or steel pole supporting the roof(optional) | ||||
| Exhaust Fans: | One set of 4kw fan for exhausting air, air capacity 12500mm3/h | ||||
| Generator setting type: | Back exhaust, quadrate steel frame, white coated steel. | ||||
| Purification system: | Pre-filter,600G high efficiency filter(ceiling filter) | ||||
| Lighting System: | Ceiling light, 8 units*4=32 pcs*16W | ||||
| Controlling system: | Power Switch, Fan switch, Lighting switch, Emergency stop,etc. | ||||
