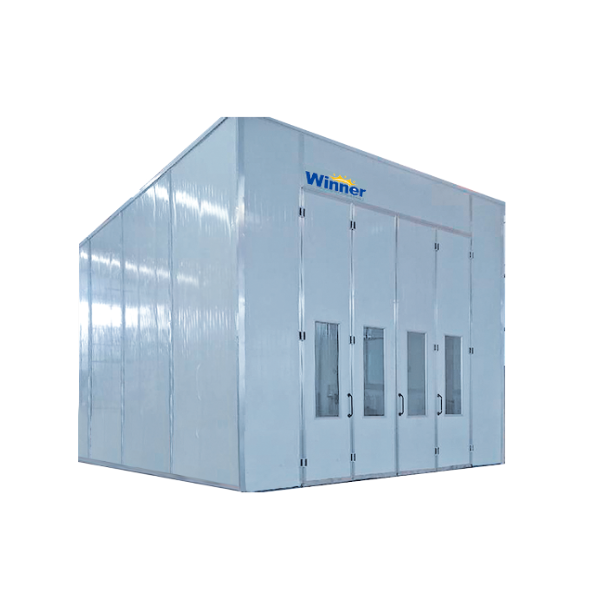

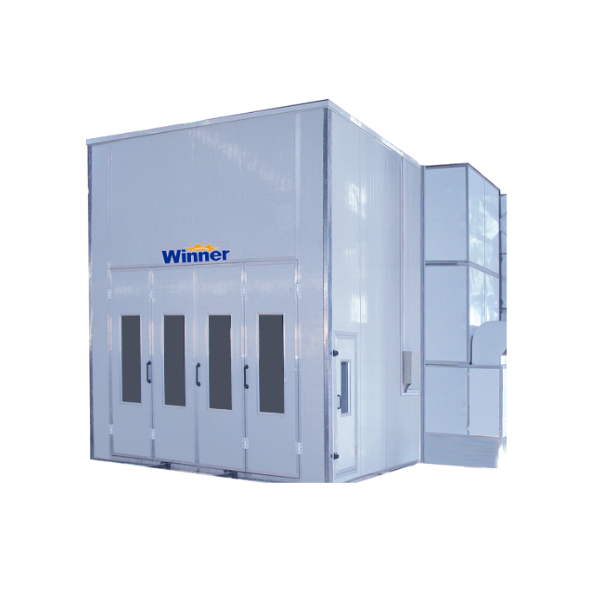

M-3900 TRUCK SPRAY BOOTH-Spray Booth-Yantai Winner Electronic&Mechanical Technology, Co., Ltd

Hot Products

Outside Size(mm): 15150*5150*5600(L*W*H)

Inside Size(mm): 15000*5000*5000 (L*W*H)

Front Door(mm): 4000*4800 (W*H)

Heating system: Diesel Burner, Infrared heating or Gas Burner for optional

Customized specifications are supported.

Get prices

Product Details

1. Truck spray booth is used for painting trucks.

2. The dimension can be customized according to the client’s request.

3. All parts related with electricity are from famous brand in China.

4. Power supply: 380V 3 phase 50Hz; 220V 3 phase 60Hz; or 415V 3 phase 50Hz.

Outside Size (mm)	1515051505600 (LWH)	Front Door (mm)	40004800 (WH) Tempered glass window
Inside Size (mm)	1500050005000 (LWH)	Total Power (KW)	48KW for diesel burner
Cabin System	Wallboard	EPS wall panel, 75mm thick; steel plate thickness 0.50mm; tongue & groove style, anti-flame and heat-insulation.
	Basement	Underground basement, two rows of pits with galvanized duty-bearing grids for air ducting.
	Roof	Galvanized steel panel, thickness 0.8mm.
	Framework	Quadrate steel and angel steel.
	Air Duct	Galvanized steel plate. Duct size: 700x700mm
Air Circulation System	Intake Fans	4 sets of 5.5KW fans, air capacity 72000m3/h.
	Exhaust Fans	2 sets of 11KW fans, air capacity 72000m3/h.
Filter System	Pre-filter, 600G high efficiency ceiling filter. The filters can capture granules larger than 10 μm.
Heating System	2 Sets of Italy Riello RG5S Diesel Burner, 2 x 260000Kcal/h. Stainless steel heat exchanger, argon arc welding. Auto-damper for changing spraying and baking.
Lighting System	LED Ceiling Lights: 14Units×4Pcs=56Pcs×36W. LED Side Lights: 10Units×4Pcs=40Pcs×30W
Electric Controlling System	Spray/Baking Switch, Light Switch, Emergency Stop, Breakdown Alarm, Failure alarm, Timer, etc.
