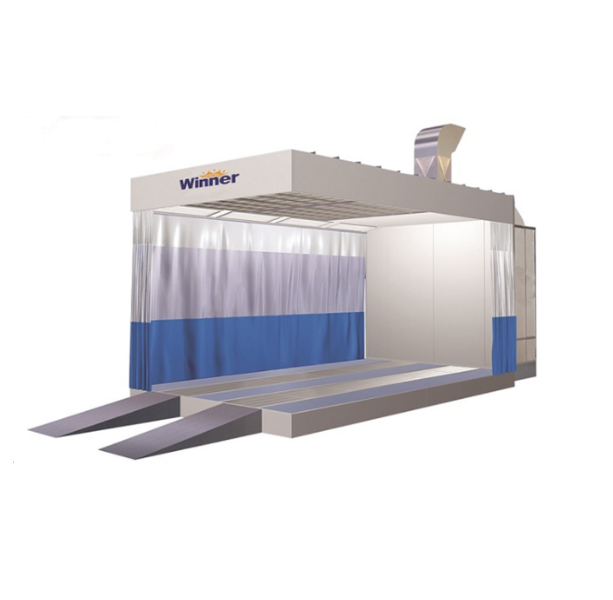

M-3600A PRE STATION-Spray Booth-Yantai Winner Electronic&Mechanical Technology, Co., Ltd

Hot Products

Outside Size(mm): 7550*3600*3300mm (L*W*H)

Inside Size(mm): 6300*3500*2600mm (L*W*H)

Customized specifications are supported.

Get prices

Product Details

1. Pre station is used for polishing cars before painting work.

2. The dimension can be customized according to the client’s request.

3. All parts related with electricity are from famous brand in China.

4. Power supply: 380V, 3 phase, 50Hz; 220V, 3 phase, 60Hz; or 415V, 3 phase, 50Hz.

Outside Size(mm)	755040003500mm (LWH)
Inside Size(mm)	630040003100mm (LWH)
Voltage	380V, 3 phase, 50Hz/220V, 3 phase, 60Hz
Wall Panel	Three sides of PVC curtains, back side with 50mm EPS wall panels.
Basement	300mm high basement, 2 rows grid plates and 3 rows of diamond plates
Ceiling installation	Steel rope hanging(standard); steel pole supporting the roof(optional)
intake and Exhaust Fan	Two sets of 3kw fan for exhausting air, air capacity 20000mm3/h One set of 4KW fan for exhausting air, air capacity 12500m3/h
Generator setting type	Back exhaust, steel frame, white coated steel.
Purification system	Pre-filter,600G high efficiency filter(ceiling filter),floor filter(fiberglass filter).
Lighting System	Ceiling light, 8 units4=32 pcs16W
Controlling system	Power Switch, Fan switch, Lighting switch, Emergency stop, ect.
