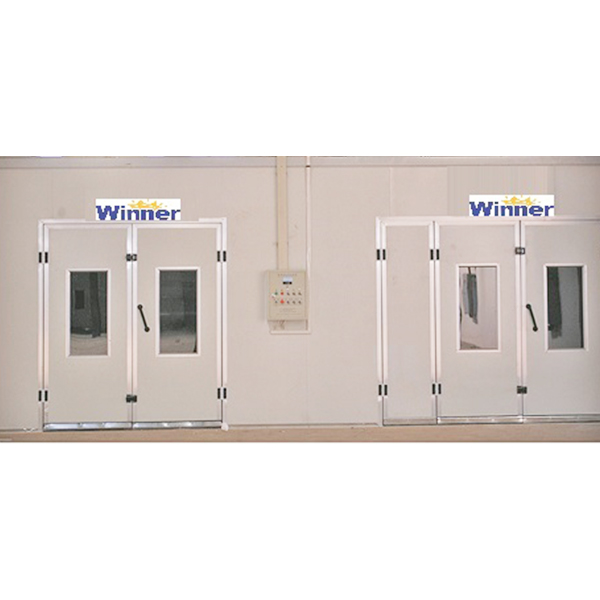

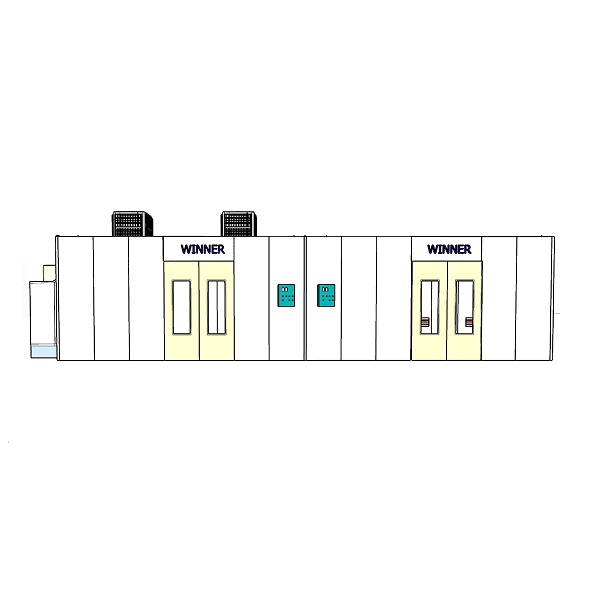

Painting Room Outside Size (mm)

4000*5000*3000(L*W*H)

Painting Room

Inner Size (mm)

3900*4900*2600(L*W*H)

Drying Room

Outside Size (mm)

8000*5000*3000(L*W*H)

Drying Room

Inner Size (mm)

7950*4900*2600(L*W*H)

Incoming Door

Size (mm)

1900*2000(W*H)

Delivery Door

Size (mm)

1900*2000(W*H)

Ventilation Rate:(Times/Hour)

245

Total Power (KW)

27

Generator Setting Type

Upper intake air

Purification

System

600G high efficiency    ceiling filters

Wall Panel:

EPS colorful steel skin panel, 50mm thick; steel plate thickness 0.5mm; tongue & groove style, anti-flame and heat-insulation.

Basement:

Galvanized steel sheet and square steel pipe assembling, 5 rows of grid plates made by flat bar and round steel.

Intake Fans:

Two sets of 3KW centrifugal fans for intaking air, air capacity 16000m3/h

Exhaust Fans:

One set of 2.2kw axial fan for exhausting air, air capacity 5000m3/h

Water Curtains

Dimension:3000×400×1500mm(L×W×H), stainless steel.

Water Pump

Lailibao Brand, Capacity:7m³/hour, Lift:18m, Rotate speed: 2860 r/min.

Power:750W, 380V/50HZ

Infrared Heating System

Infrared Heating Tubes, 18 pieces ×1 KW, total 18KW

Lighting System

Painting room :6units×4 pieces=24pieces×16W LED light ;

Baking room : 8pieces×16W LED light

Controlling system

Lighting switch, spraying / baking switch, time setting, emergency stop, temperature controller, power supply, etc.
