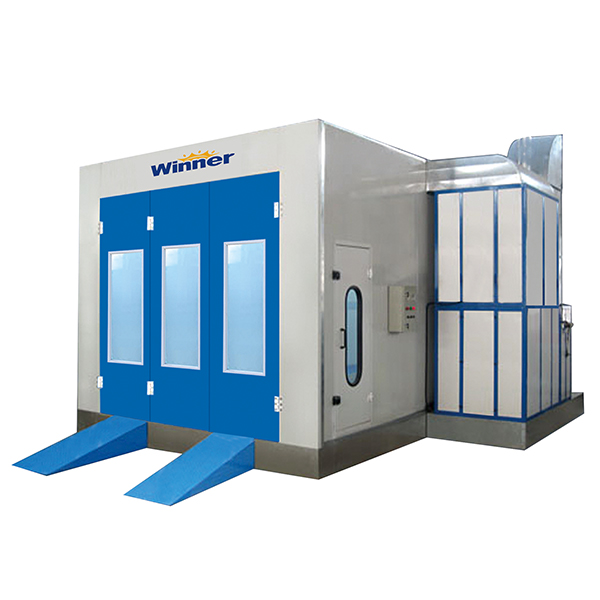

M-3200B CAR SPRAY BOOTH

Outside Size(mm): 7050*4050*3500 (L*W*H)

Inside Size(mm): 6900*3900*2800 (L*W*H)

Front Door(mm): 3000*2700(W*H)

Heating system: Diesel Burner, Infrared heating or Gas Burner for optional

Customized specifications are supported.

Get prices

Product Details

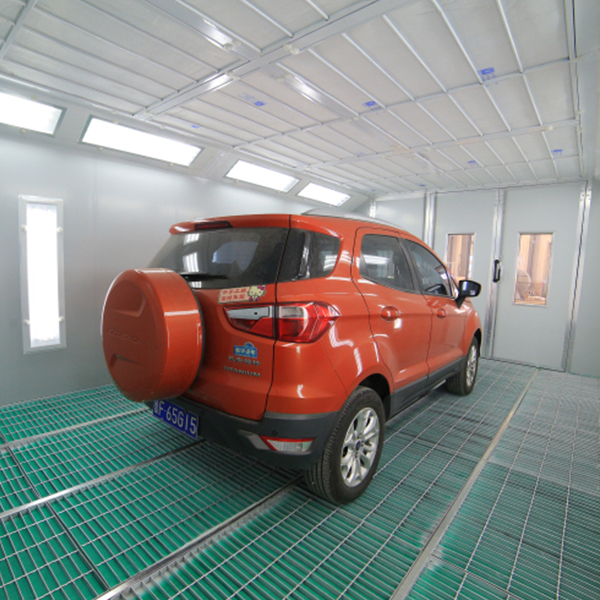

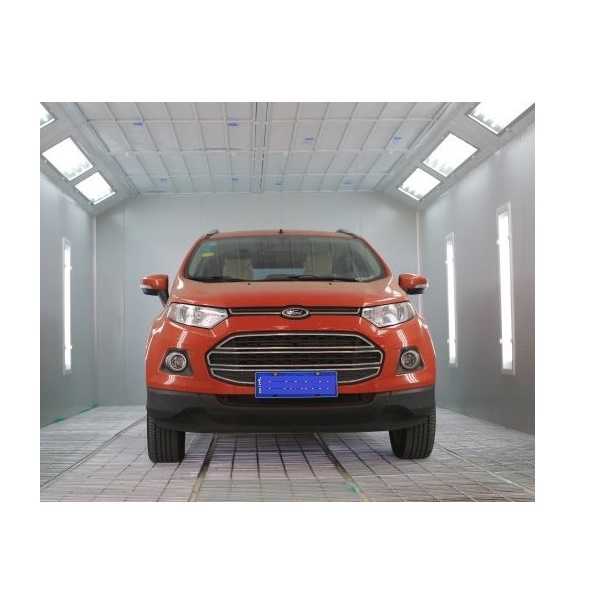

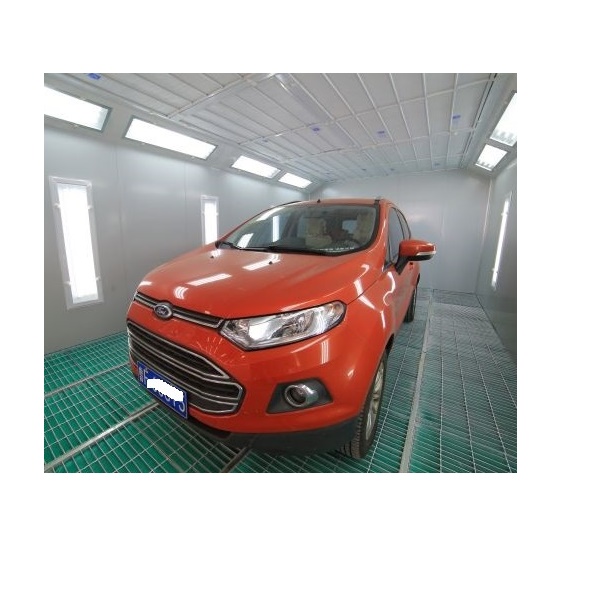

1. Spray booth is used for painting cars and light trucks.

2. The dimension can be customized according to the client’s request.

3. All parts related with electricity are from famous brand in China.

4. Heating system: diesel burner, electric infrared heating and gas burner heating system are optional.

5. Power supply: 380V, 3 phase, 50Hz; 220V, 3 phase, 60Hz; or 415V, 3 phase, 50Hz.

Outside Size(mm)	705040503500 (LWH)	Front Door(mm)	30002750(WH)
Inside Size(mm)	690039002800 (LWH)	Total Power(KW)	15 KW for diesel burner / 40 KW for infrared heating
Wall Panel	EPS colorful steel skin panel, 75mm thick; Tongue & groove style, anti-flame and heat-insulation.
Basement	Galvanized steel sheet and square steel pipe assembling. 5 rows of grid plates made by flat bar and round steel. With 2 ramps.
Intake Fans	Two sets of 4 KW fan for intaking air, air capacity 25000m3/h
Exhaust Fans	One set of 5.5 KW fan for exhausting air, air capacity 15000m3/h
Purification system	Pre-filter, 600G high efficiency ceiling filter, Fiberglass floor filter
Heating System (Diesel burner or Infrared heating)	Italy Riello G20 Diesel Burner, 200000Kcal/h. Stainless steel heat exchanger, argon arc welding. Electric-damper for changing spraying and baking Infrared heating system, 3-tubes/unit, totally 8 heating units, 24KW
Lighting System	For diesel burner heating system. Ceiling Lights: 8Units×4Pcs=32Pcs×18W. Side Lights: 6Units×4Pcs=24Pcs×14W
Controlling system	Power switch, Spray/baking switch, Light switch, Temperature Setup, Emergency stop, etc.
