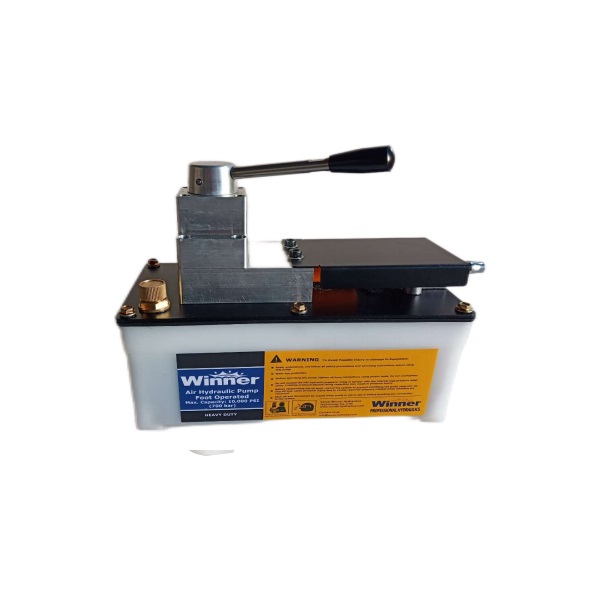

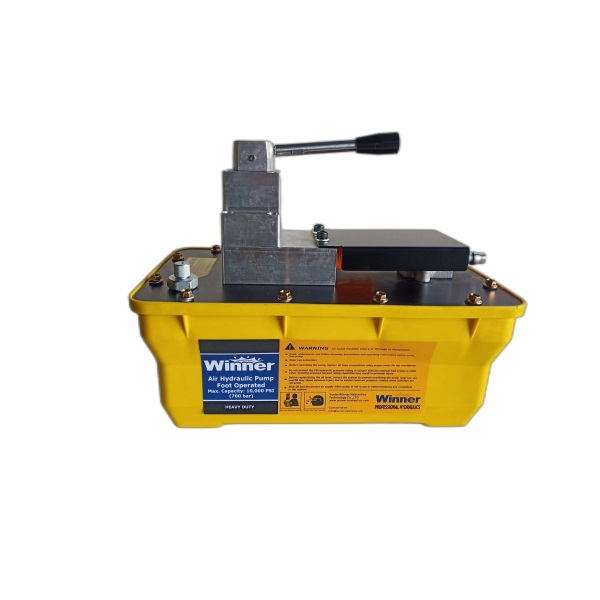

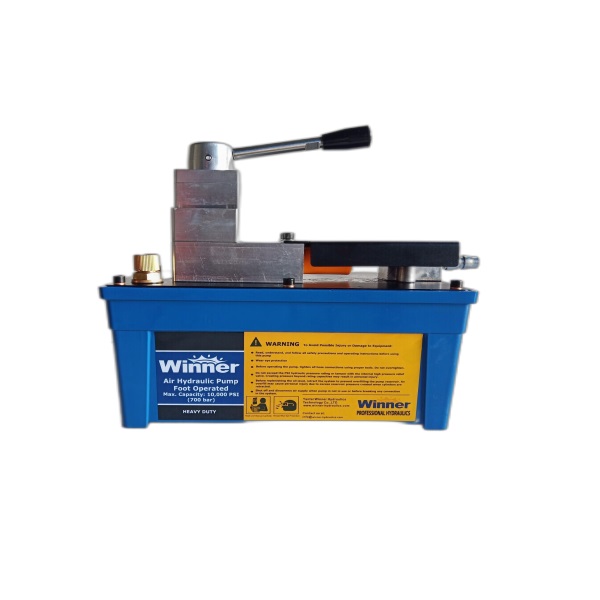

Air Hydraulic Pump
Foot Operated, Double Action
Max. Pressure 10000psi (700bar)
Product Details
Features
1. The pump is smart and portable with small size and light package, which is widely used for single/double action cylinders.
1. High quality seals and reasonable structure supply a strong force & excellent pressure-holding performance.
2. Every part of the pump is processed fine and durable.
With easy-economical repair unit, the pump can be used for long time with these recycle parts
Specifications Table
| WPA-D SERIES SPECIFICATIONS (METRIC) | |||||||||||||||||
| Model | Reservoir Type | Reservoir | Valve Type | Air Supply Required | Flow Rate | Oil Port | weight | ||||||||||
| capacity | usable | @0 bar | @700 bar | ||||||||||||||
| L | L | bar | L/min | L/min | kg | ||||||||||||
| WPA-1D | Polyethylene reservoir | 1.7 | 1.6 | Manual 3Way/4Way | 3-8 | 1.22 | 0.095 | 3/8 NPT | 6 | ||||||||
| WPA-2D | Aluminum reservoir | 1.7 | 1.6 | Manual 3Way/4Way | 3-8 | 1.22 | 0.095 | 3/8 NPT | 7 | ||||||||
| WPA-3D | Polyethylene reservoir | 2.3 | 2.1 | Manual 3Way/4Way | 3-8 | 1.22 | 0.095 | 3/8 NPT | 6.8 | ||||||||
| WPA-4D | Steel reservoir | 3.8 | 3.5 | Manual 3Way/4Way | 3-8 | 1.22 | 0.095 | 3/8 NPT | 10 | ||||||||
| WPA-5D | Steel reservoir | 5 | 4.6 | Manual 3Way/4Way | 3-8 | 1.22 | 0.095 | 3/8 NPT | 12 | ||||||||
